7、

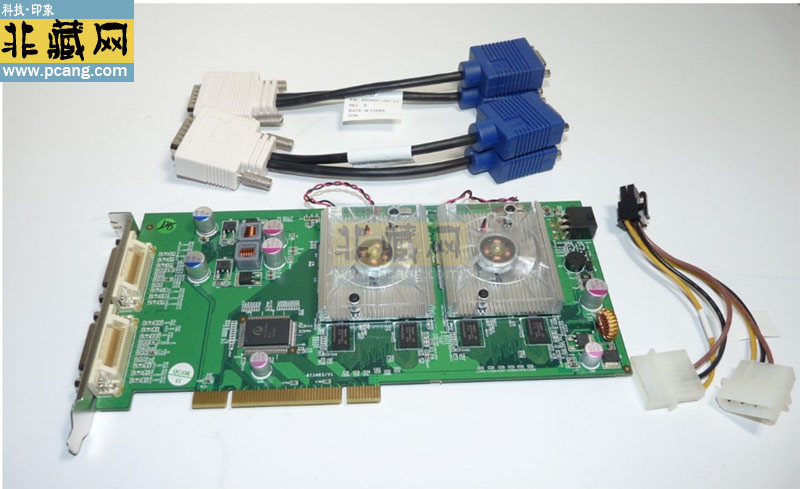

捷登Jaton 6200双核 显卡
总部位于台湾的一个显卡品牌，采用Nvidia Geforce6200芯片，PCI接口，4个VGA输出端口，每个核心拥有512MB
DDR2显存，显卡型号VIDEO-348PCI-QUAD。
NVIDIA GEFORE6200 PCI 4VGA 512MB DDR2
Video-348PCI series video accelerators are based on NVIDIA GeForce core
technology. Video-348PCI series feature NVIDIA UltraShadow II technology
designed to enhance the performance of shadow-intensive games. Powered
by the proven NVIDIA CineFX 3.0 engine, these advanced GPUs enable
unlimited programmability and infinite program length, allowing develops
to create new class of advanced visuals and effects. In addition,
features such as displacement mapping enable the creation of unique 3D
characters and objects, allowing develops to alter a 3D models
appearance on an inspanidual vertex basis. Through this technique,
developers can create ultra realistic models that fully interact with
the unique lighting of a particular environment. In addition, through
Shader Model 3.0 and the advanced CineFX 3.0 engine, game develops can
create complex lifelike effects like skin, hair and shadows that fool
the eye of even the most discriminating game enthusiast. Video-348PCI
series deliver unmatched video features and functionality through the
industry's first on-chip video processor. This dedicated unit on the GPU
handles the lion's share of the video processing load, freeing up the
CPU for other tasks. The video processor delivers MPEG support for
encoding and decoding of both analog and digital video content, as well
as high quality video scaling and filtering for impeccable playback
quality at any widow size. An integrated TV encoder allows you to
connect your PC to TV for direct to TV playback and advanced adaptive
de-interlacing technology provides smooth playback on progressive
displays. Built on the foundation of the industry-renowned NVIDIA
Unified Driver Architecture (UDA), Video-348PCI series deliver unmatched
compatibility with the widest range of games and applications for the
ultimate "install and play" experience. Equip yourself with a
Video-348PCI series GPU so you can play your games the way it's meant to
be played.
Product Description Jaton VIDEO-348PCI-QUAD - graphics adapter - GF 6200
- 1 GB
Device Type Graphics adapter
Enclosure Type Plug-in card
Interface Type PCI
Dimensions (WxDxH) 9 in x 4.3 in
Graphics Processor / Vendor NVIDIA GeForce 6200
RAMDAC Clock Speed 400 MHz
API Supported DirectX 9.0, OpenGL 1.5
Video Memory Installed ( Max ) 1 GB - DDR2 SDRAM
Video Output 2048 x 1536 / 60 Hz - 32-bit color
Max Monitors Supported 4
System Requirements Microsoft Windows Vista / 2000 / XP
General
Device Type Graphics adapter
Enclosure Type Plug-in card
Interface Type PCI
Depth 9 in
Height 4.3 in
Processor / Memory
Graphics Processor / Vendor NVIDIA GeForce 6200
RAMDAC Clock Speed 400 MHz
Video Memory Installed 1 GB
Technology DDR2 SDRAM 64-bit
Video Output
Max Resolution (external) 2048 x 1536 / 60 Hz
Colors Max Resolution (external) 32-bit color
API Supported DirectX 9.0, OpenGL 1.5
Max Monitors Supported 4
Digital Video Standard Digital Visual Interface (DVI)
Expansion / Connectivity
Interfaces\ x DVI-I - DMS-59 4 x VGA - 15 pin HD D-Sub (HD-15) ( on
supplied cable )
Compatible Slots 1 x PCI
Miscellaneous
Included Accessories 6 pin power cable
Cables Included 2 x DMS-59 to 2 x VGA adapter
|
